Over the years, data warehouses have been the main tool for company decision-making and analysis. These include conventional OLAP and ETL tools supplied by countless hardware and software vendors, DW appliances built by combining databases and servers, in-memory databases and virtualization tools.

But how do you accommodate and process an ever-growing amount of data at an acceptable speed for analysis and for finding information that’s crucial to the business?

In Brazil, we’re still at a very early stage when it comes to Big Data. I believe that companies will soon start their projects to “migrate” conventional DW databases to HDFS.

In my opinion, the BI professional of today who invests in learning Hadoop, Spark and Fast Data loading methods will be one step ahead in the job market.

The Hadoop ecosystem, which is evolving alongside large data environments, also has a set of technologies for building a data warehouse. For example, Apache Hive is a data warehouse option within the Hadoop ecosystem that can process large data sets stored in distributed storage environments using SQL.

So, is there a recipe or a magic formula for migrating the data? Unfortunately not, but we can follow a few guidelines.

1 - Denormalize

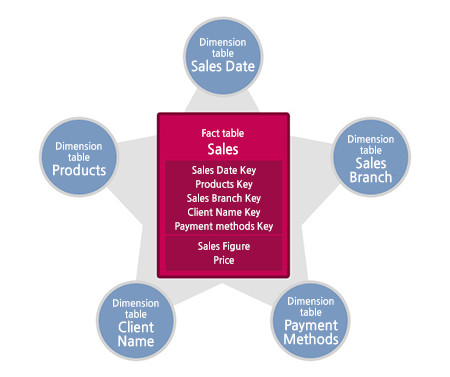

Denormalization is commonly used to improve performance when implementing a Star Schema model on top of the Hadoop distributed file system (HDFS). Unlike an RDBMS, Hadoop tolerates the data overlap caused by denormalization thanks to relatively cheap hardware and software.

Therefore, the decision to denormalize data sets that change frequently should be made carefully, weighing the trade-off between query performance and deployment. The following is an example of the denormalization method that can be used to build a Hadoop-based data warehouse.

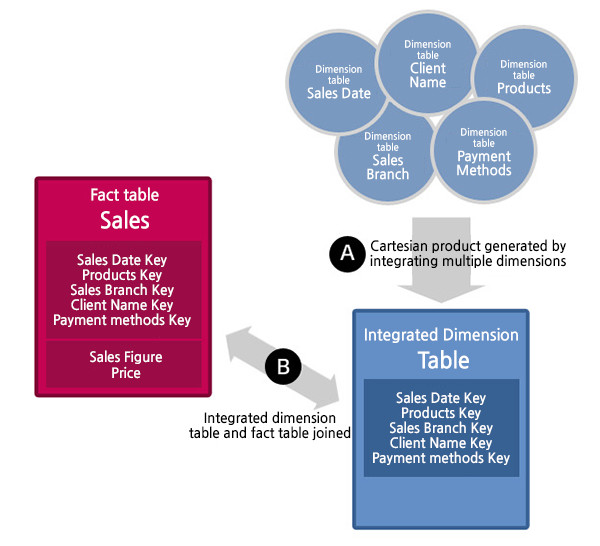

1.1 - Merge Dimensions

Several dimensions with a small number of rows are bundled and turned into a single dimension data set, so the number of fact data sets and joins can be reduced. It’s hard to optimize the system with a large number of joins between dimension data sets and fact data sets when using Hadoop.

A small number of large files is better than a large number of small files for optimal performance with Hadoop; one large dimension is processed faster than several small dimensions.

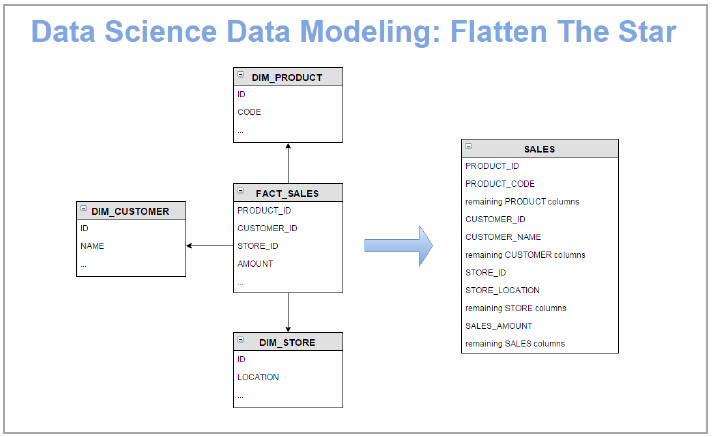

1.2 - Merge Facts with Dimensions

Dimension and fact data sets that are queried together are organized into a single set by applying the join during the deployment process instead of at query time on the user side.

The data sets are joined at data load time to reduce the number of joins. It’s similar to the dimension merging process, except that the merge is fact-to-dimension.

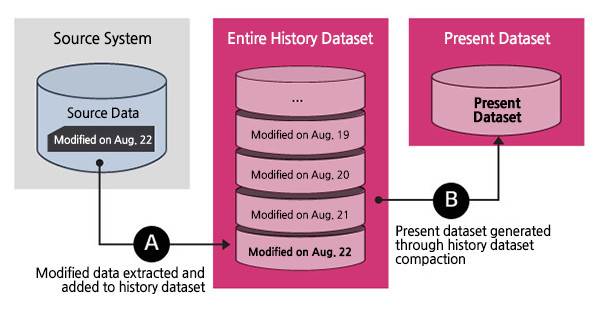

1.3 - Generate Historical and Current Data Sets Together for Loading

Since it’s usually faster to regenerate the entire data set than to update a single event, given how HDFS works, the data sets needed for the loading process are appended according to their temporal and business characteristics.

It’s better to reload all the current content together with the history than to run multiple updates.

2 - Organize Fact tables in a “Columnar” way

It may sound strange, but it’s much better to have hundreds of columns than millions of rows. Especially when users build a data warehouse that extracts and uses part of a dataset’s columns, a columnar format that allows partial column extraction greatly improves query performance.

As an example, we can have a Sales fact organized by “Month/Year” that expands its columns with each new period.

3 - Compress the Data

Compression helps improve processing performance by reducing not only the size of the stored data but also the amount of disk I/O. It’s better to use a compression codec that supports splittable processing so the nodes can be processed in parallel in a distributed environment.

If compression isn’t feasible, additional splittable file storage formats, such as Avro, are needed. As with file storage, different compression methods can be used for each partition within a single data set.

4 - Partition the Data

Data sets are partitioned according to data query patterns, so results can be found without scanning the entire data set. Partitioning helps improve performance, since it reduces the objects a query has to scan and reduces I/O.

Once a data set is split into partitions according to some criterion, such as dates that reflect user query patterns, only one daily partition needs to be scanned when extracting data for a given date, which makes it far more efficient than a full scan of the whole data set.

The partitioning method is similar to building a data warehouse based on an RDBMS. One difference is that, unlike an RDBMS that defines how a data set is partitioned, Hadoop creates several partitioning strategies according to a user’s query patterns.

Hadoop copies the original dataset and creates several data sets, and each data set is strategically partitioned. In other words, Hadoop uses much more disk space, copying and multiplying a data set to improve performance.

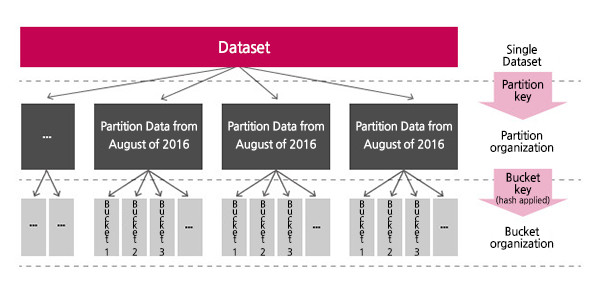

5 - Bucketing

Bucketing is a process by which a dataset is split into buckets, groups of clustered data, using the values of a given column. Each block can have several column values as criteria, but a given value among the criteria column’s values is included in only one block.

Another benefit of bucketing is that it makes data sets small enough to use a map-side join, which loads that block into memory for fast processing.

6 - Index the Data

In Apache Hive, you can generate indexes that play roles similar to RDBMS indexes. Hive supports compact indexes, bitmap indexes and so on. It’s important to first analyze user query patterns in order to generate indexes that reflect those patterns (as in an RDBMS indexing strategy).

When using an index, statistics should be collected regularly to help the optimizer find the best route.

Conclusion

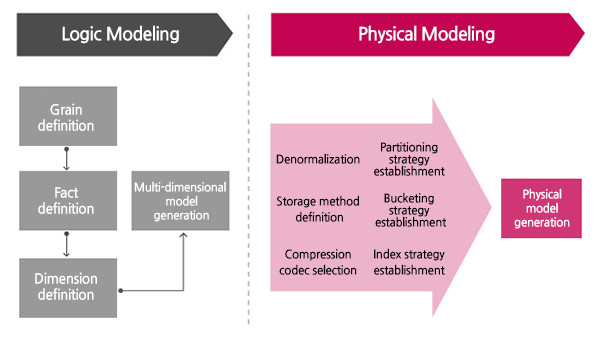

The fundamental value of a data warehouse is the same, even when it’s built as an application within a Hadoop ecosystem. Fortunately, data warehouse building methodology can be used without much change when building Hadoop-based databases.

As long as the characteristics of Hadoop ecosystems are reflected in your physical modeling process, the data warehouse will be ready for the era of big data, where structured and unstructured data will be integrated.

References

  • Ralph Kimball and Matt Brandwein – Hadoop 101 for EDW Professionals
  • Hadoop 101 for EDW Professionals – Dr. Ralph Kimball Answers Your Questions
  • Ralph Kimball and Eli Collins – EDW 101 for Hadoop Professionals
  • Ralph Kimball – Newly Emerging Best Practices for Big Data
  • Ralph Kimball – The Evolving Role of the Enterprise Data Warehouse in the Era of Big Data Analytics
  • Josh Wills - What Comes After The Star Schema?
